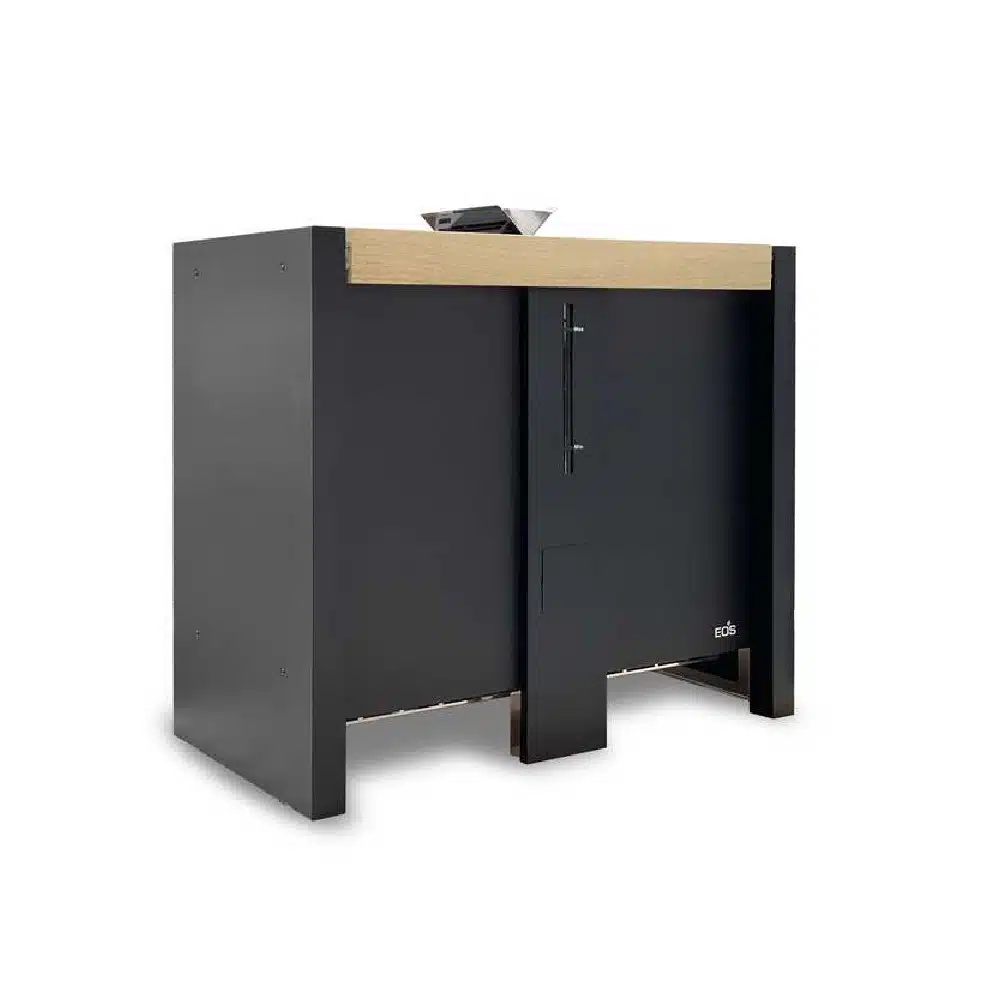

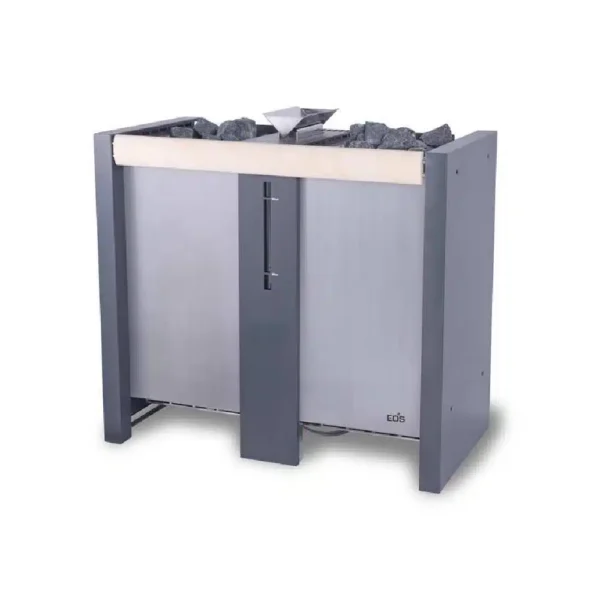

Herkules XL S120 HD Vapor

The flagship of the EOS Herkules series for large commercial saunas.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

0 People watching this product now!

Payment Methods:

Description

The flagship of the Herkules series for large commercial saunas.

The Herkules XL S120 HD set standards for superior performance, durability and sophisticated design.

Two separate rock stores with up to 120 kg stones ensure an excellent temperature stability and heat storage capacity. The unique construction with rock stores above the heating elements provides continuously high performance and reliability.

The ‘Vapor’ version of theHerkules XL S120 model features a built-in powerful 3 – 4 kW vaporizer placed in the middle between both rock stores. The vaporizer is equipped with an automatic refilling (integrated top-up device) for convenience in use.

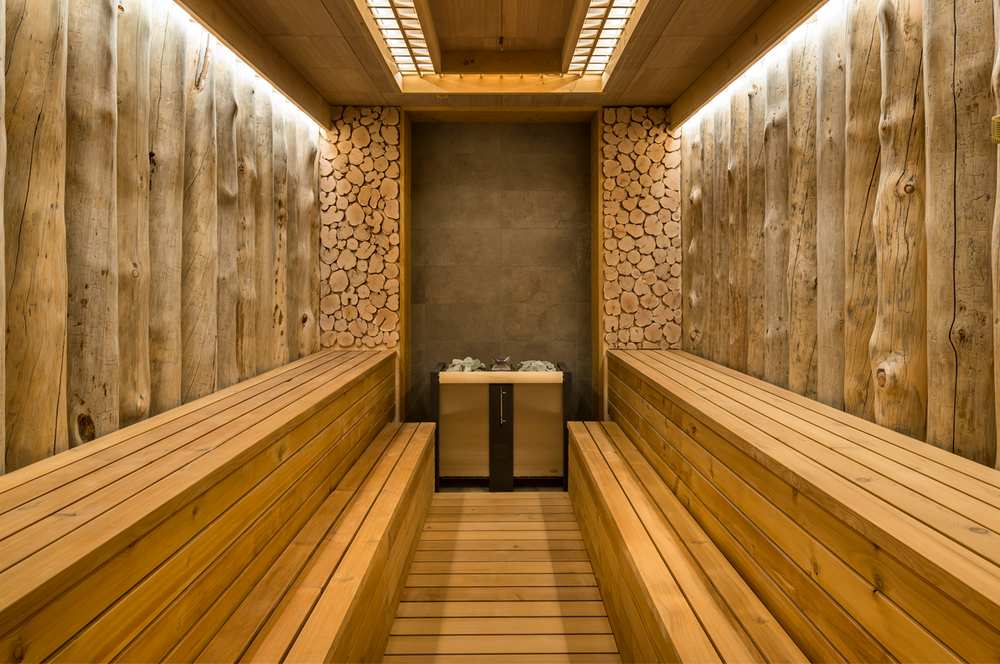

Herkules XL S120 HD Vapor is ideal for steamy saunas and allows to achieve a large variety of climate forms – from traditional dry sauna to a perfectly mild herbal bath.

All Hekules Xl S120 models have an upgraded special “heavy-duty” inner wiring with solid copper busbars for even more durability and long-lasting service even by unfavourable operation conditions in a commercial sauna.

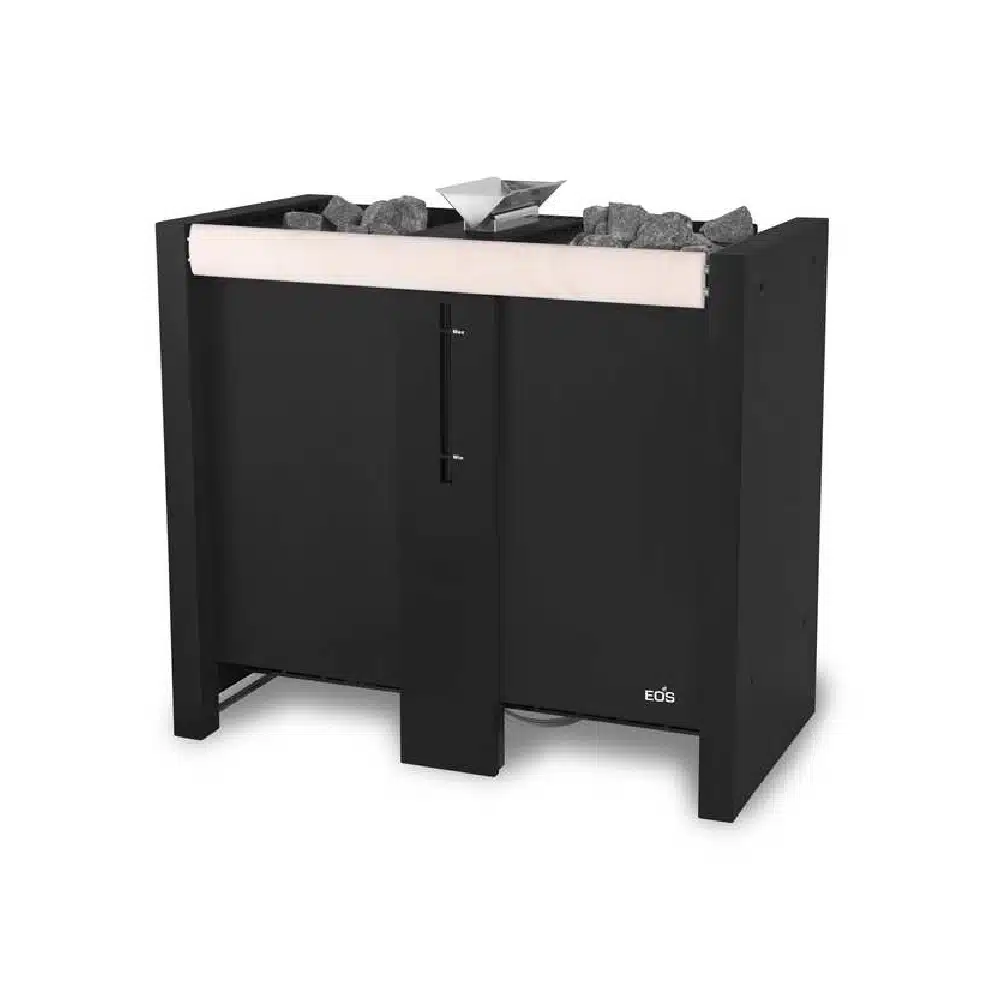

Also available with high-quality matt black finish*



Optional: Heater guard rail with mounting brackets, rear wall cover panel.


Power Item no.
18,0 kW 948119
24,0 kW 948120
30,0 kW 948121
18,0 kW – black* 948824
24,0 kW – black* 948825
30,0 kW – black* 948826

Specification

Durablility & Superior Performance

Herkules XL S120 HD set standards for superior performance, durability and sophisticated design.

2 Seperate Rock Stores

Two separate rock stores with up to 120 kg stones ensure an excellent temperature stability and heat storage capacity.

Unique Construction

The unique construction with rock stores above the heating elements provides continuously high performance and reliability.

Vaporizer

A built-in powerful 3 - 4 kW vaporizer placed in the middle between both rock stores. The vaporizer is equipped with an automatic refilling (integrated top-up device) for convenience in use.

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection control unit (18 / 24 / 30 kW)

3 x 16 A / 3 x 16 A / 1 x 16 A

Fuse protection LSG unit (18 / 24 / 30 kW)

3 x 16 A / 3 x 35 A / 3 x 63 A

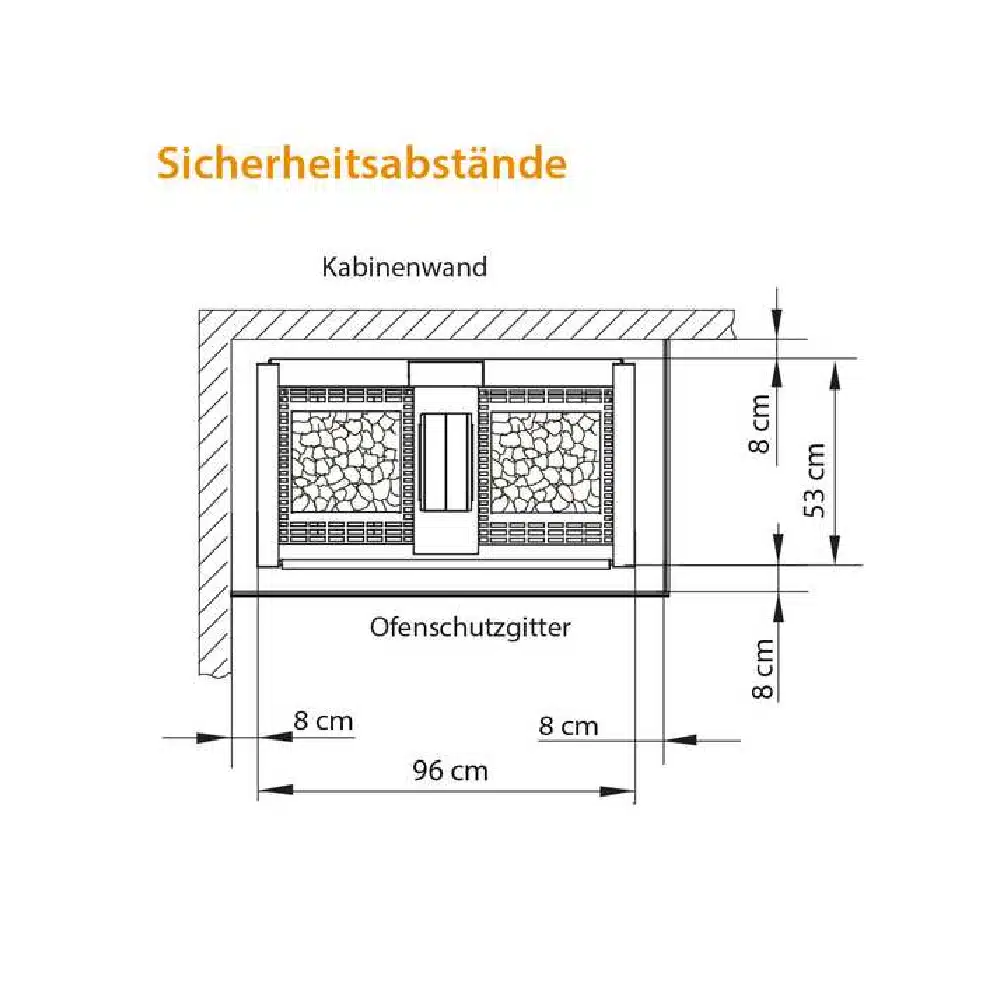

Dimensions H/W/D, in cm

85 / 96 / 53

For sauna cabin size (18 / 24 / 30 kW)

24 - 35 m³ / 35 - 45 m³ / 45 - 65 m³

Min. size air inlet and outlet (18 / 24 / 30 kW)

50 x 6 cm / 50 x 8 cm / 50 x 10 cm

Weight withouth rocks

85 kg

Stone filling

120 kg

Power extension required
