Description

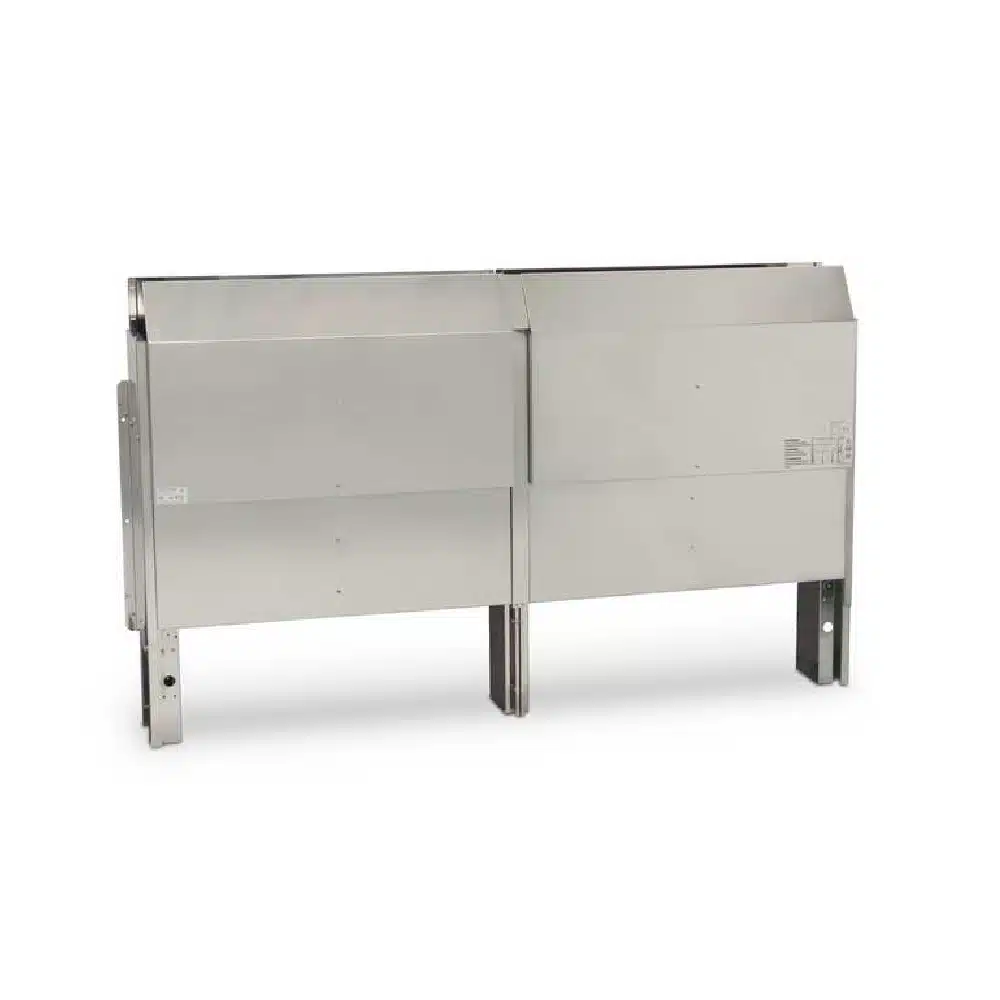

BEHIND-THE-BENCH SAUNA HEATER

Concealed installation – Behind-the-bench model for the (dry) Finnish sauna
Special extra slim construction for place-saving hidden installation. Only 22 cm depth required for installation!

Saves valuable place and increases safety in use thanks to the hidden installation.

Very robust and reliable. Inner and outer shell of stainless steel. Dust and water collecting tray at the bottom.
Rock store with water distribution gutter across the entire heater width.

Dimensions HWD: 870 x 1440 x 200 mm

Rock store with approx. 20 kg stone volume.



Delivery scope includes:

Water splash funnel with 1 m hose
Cover protection safety grill 1600 mm

Power Item no.
15,0 kW 94.7219
18,0 kW 94.7222

Specification

Place Saving

Special extra slim construction for place-saving hidden installation. Only 22 cm depth required for installation!

Robust and Reliable

Very robust and reliable. Inner and outer shell of stainless steel. Dust and water collecting tray at the bottom.

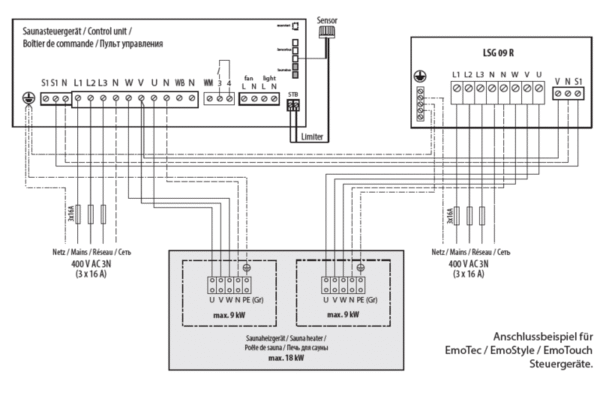

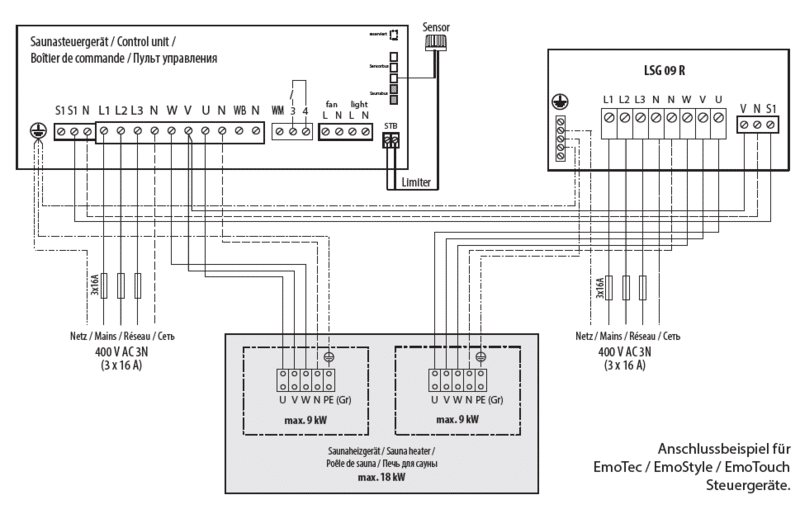

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection (control unit)

3 x 16 A

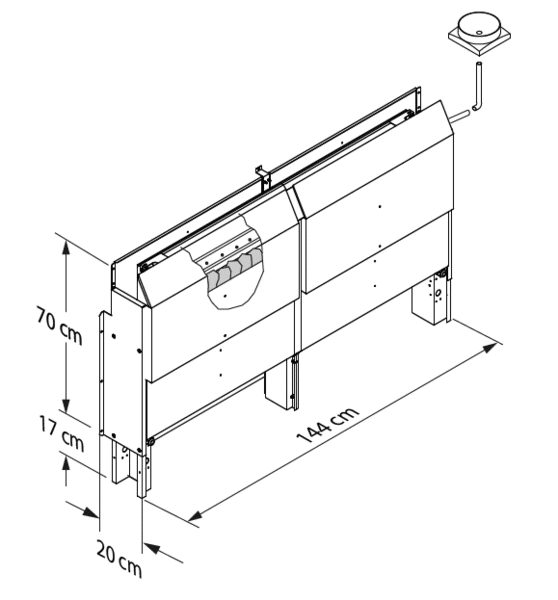

Dimensions H/W/D, in cm

87 / 144 / 20

For sauna cabin size (15,0 / 18,0 kW)

18 - 25 m³ / 24 - 30 m³

Min. size of air intake and outlet (15,0 / 18,0 kW)

2x 60 x 5 cm

Weight without stones and packing (15,0 / 18,0 kW)

44 kg / 45 kg

Stone filling

20 kg

Power extension needed

LSG 10
