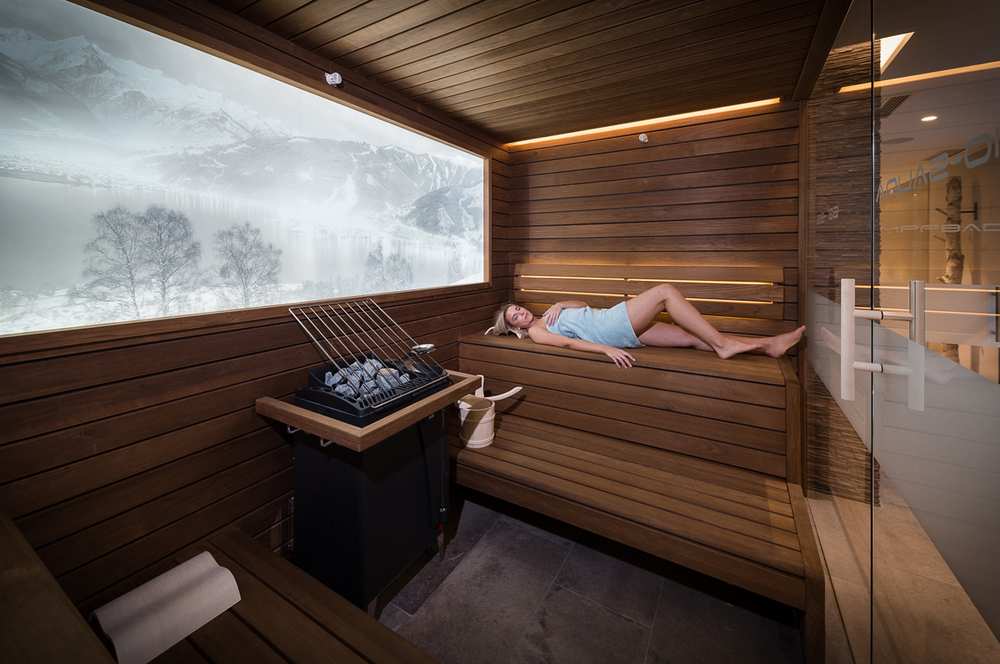

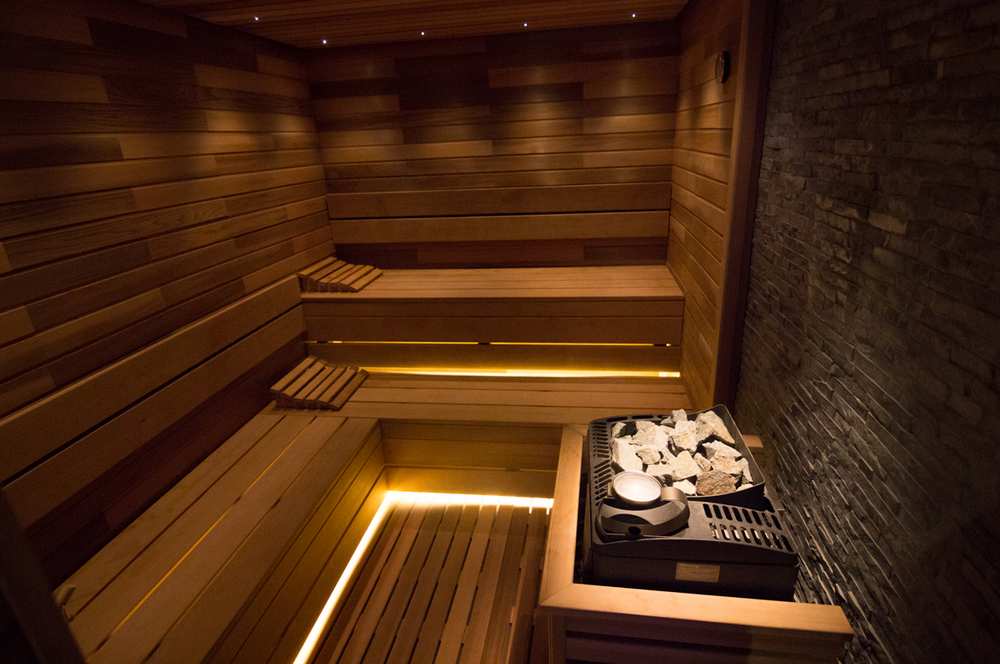

Bi-O Max

Premium class, floor-standing sauna heater with integrated vaporizer
For flexible climate settings with humidity operation – from dry and hot to mild and steamy, herbal bath and others. Sauna heater, optimal for private and commercial use.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

0 People watching this product now!

Payment Methods:

Description

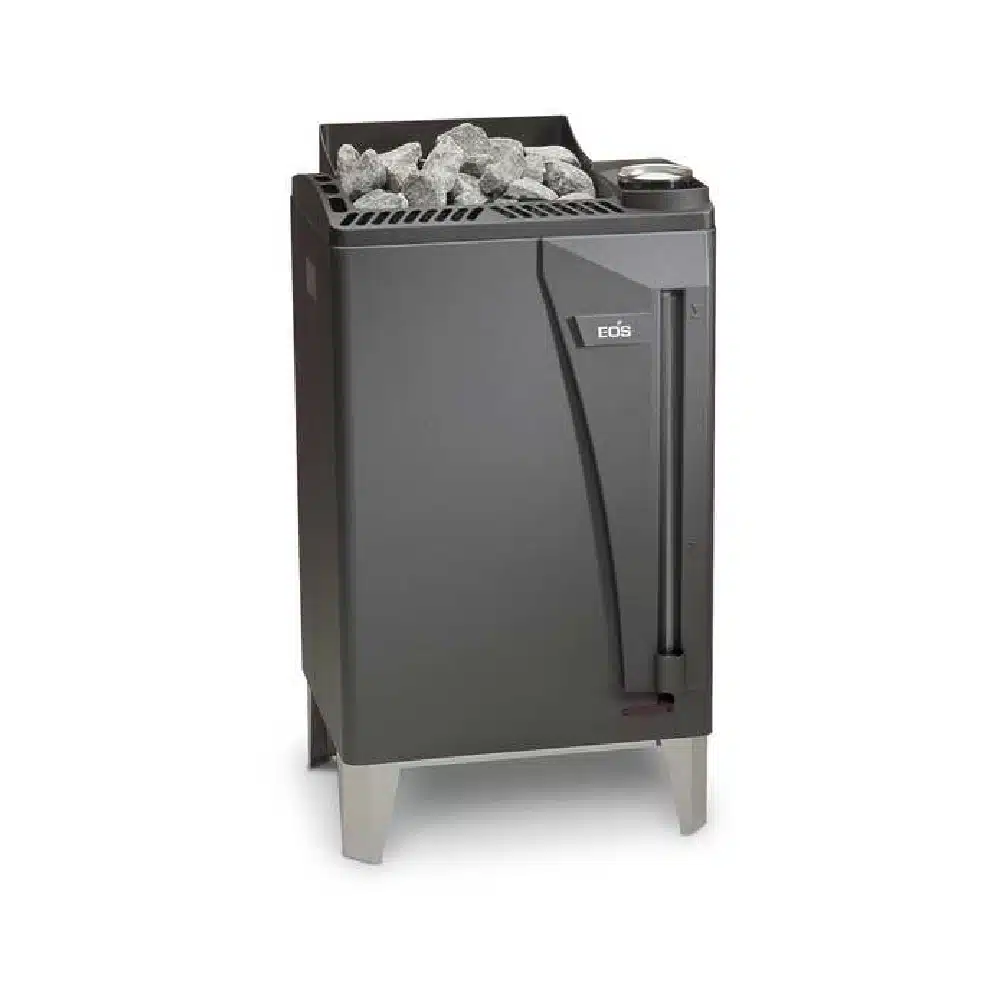

Premium class, floor-standing sauna heater with integrated vaporizer
For flexible climate settings with humidity operation – from dry and hot to mild and steamy, herbal bath and others. Sauna heater, optimal for private and commercial use.

Vaporizer at the right-hand side, with herbs holder. Dry-run protection with acoustic alarm. Water level indication at the front panel. 8 l water tank, manual filling.

Timeless, elegant design, die-cast aluminium top and front panel cover, anthracite pearl effect finish. Completely made of stainless steel. Extra large rock store ensures high temperature stability and great water evaporation capacity for powerful water splashes. No contact between stones and heating elements. Large side channels ensure optimal air convection for fast heat up time.

Rock store fits approx. 60 kg stones.

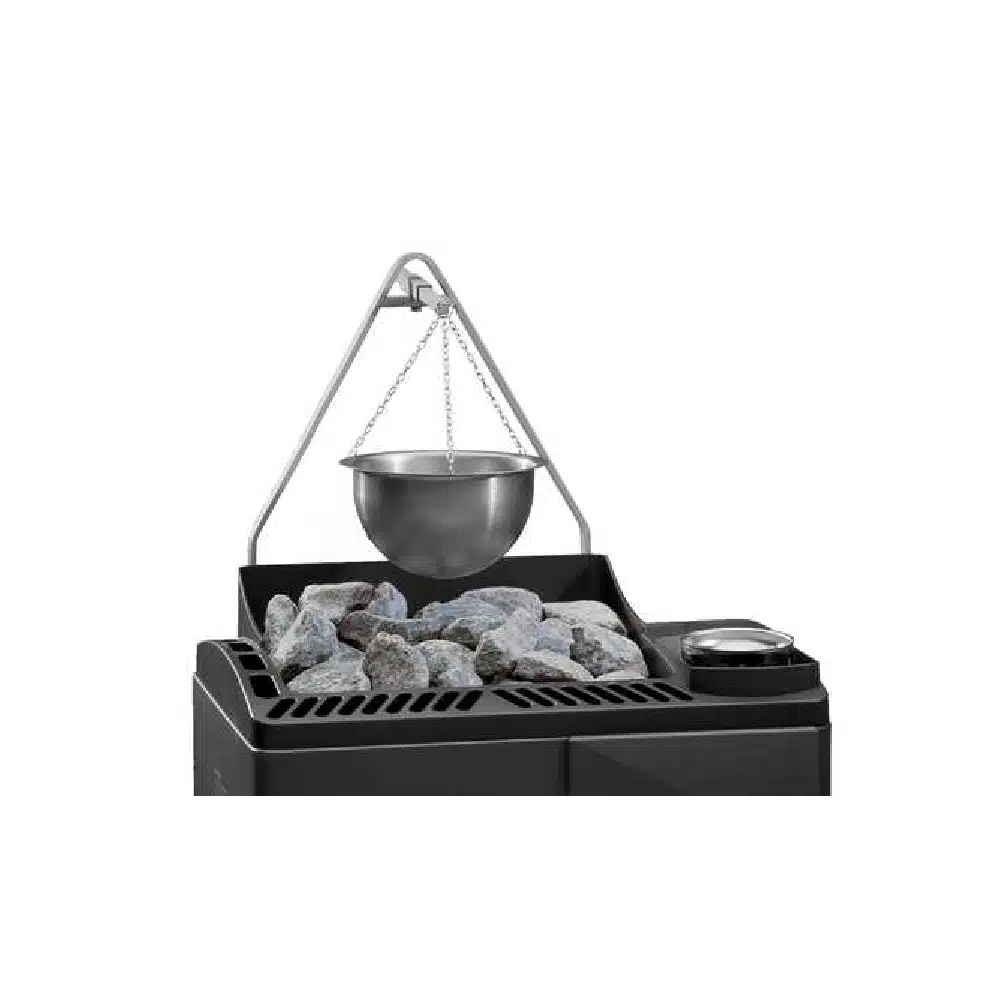

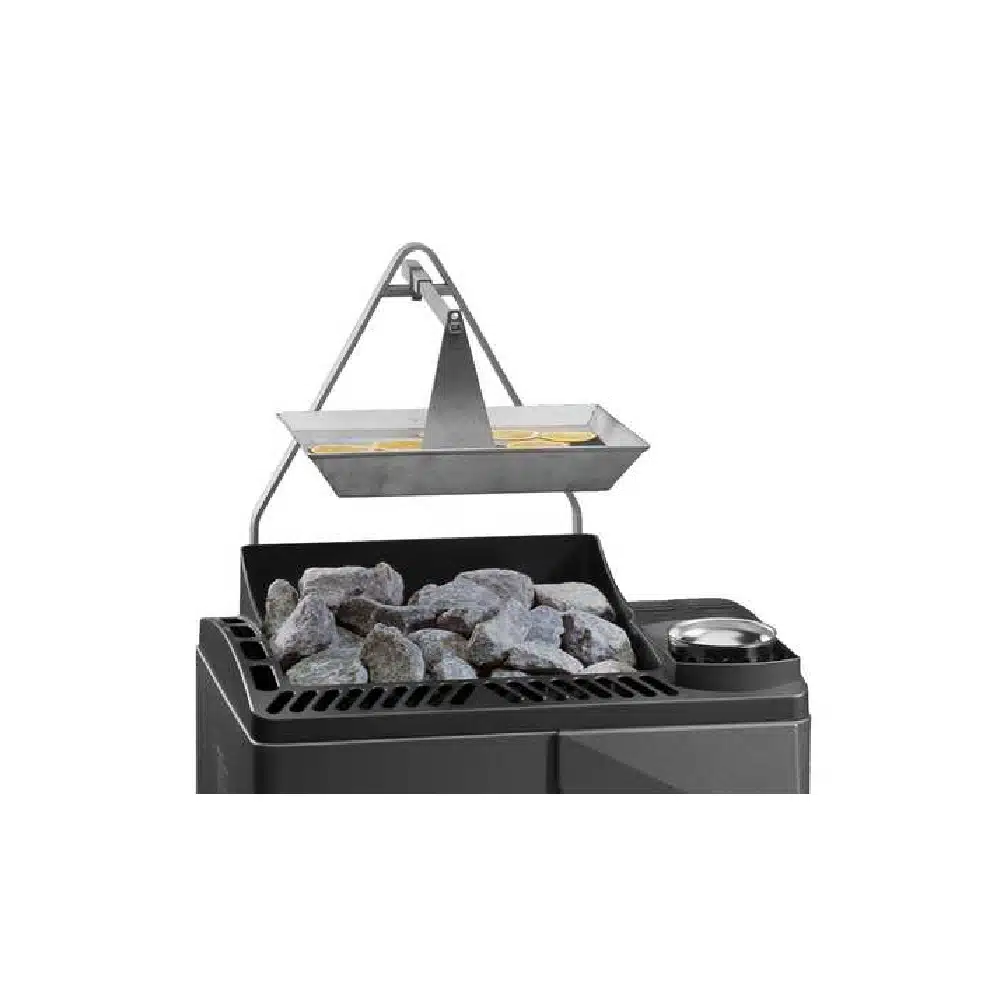

Optional: Essence tray set, herbs bowl set, herbs bowl with wave-shaped holder

Power Item no.
9,0 kW 942317
12,0 kW 942318
15,0 kW 943922



Specification

Premium Class Heater

Premium class, floor-standing sauna heater with integrated vaporizer

Flexible Climate Setting

For flexible climate settings with humidity operation - from dry and hot to mild and steamy, herbal bath and others. Sauna heater, optimal for private and commercial use.

Vaporizer

Vaporizer at the right-hand side, with herbs holder. Dry-run protection with acoustic alarm. Water level indication at the front panel. 8 l water tank, manual filling.

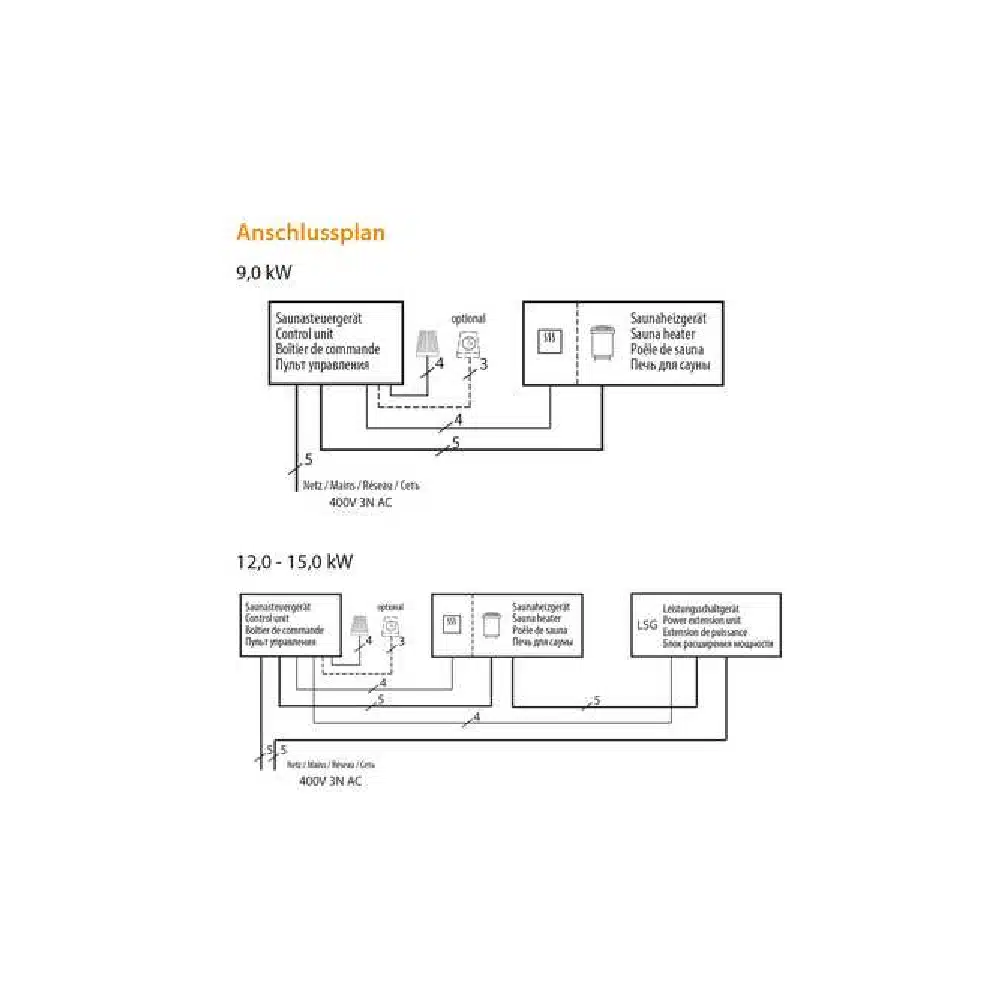

Electrical connection

400 V 3N ~ 50/60 Hz

Power Vaporizer

2,0 kW 8 l

Fuse protection (control unit)

3 x 16 A

Fuse protection (LSG) (9,0 kW / 12,0 - 15,0 kW)

no / 3 x 16 A

Dimensions H/W/D, in cm

92,5 / 50 / 50

For sauna cabin size (9,0 / 12,0 / 15,0 kW)

9 - 14 m³ / 14 - 18 m³ / 18 - 25 m³

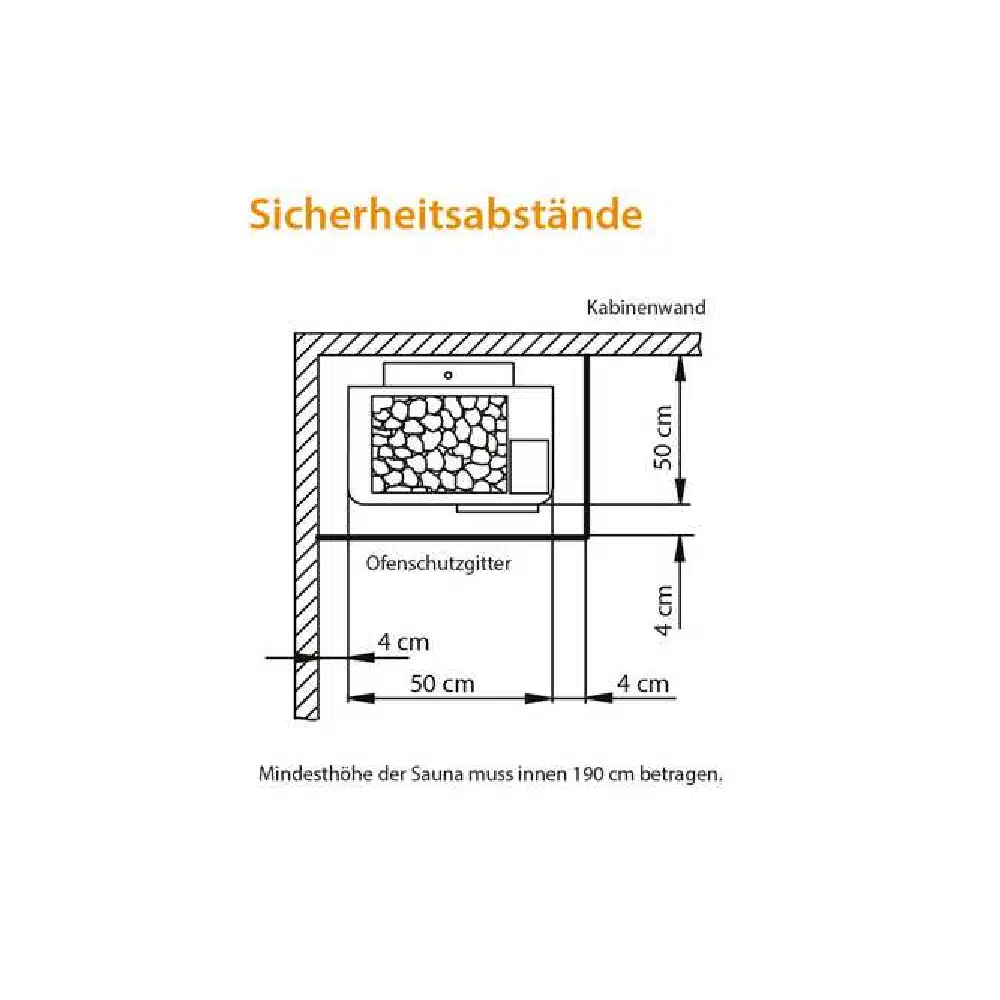

Min. size air inlet and outlet (9,0 / 12,0 / 15,0 kW)

35 x 6 cm / 35 x 7 cm / 35 x 9 cm

Weight withouth rocks

49 kg

Stone filling

60 kg

Power extension required (9,0 kW / 12,0 - 15,0 kW)
