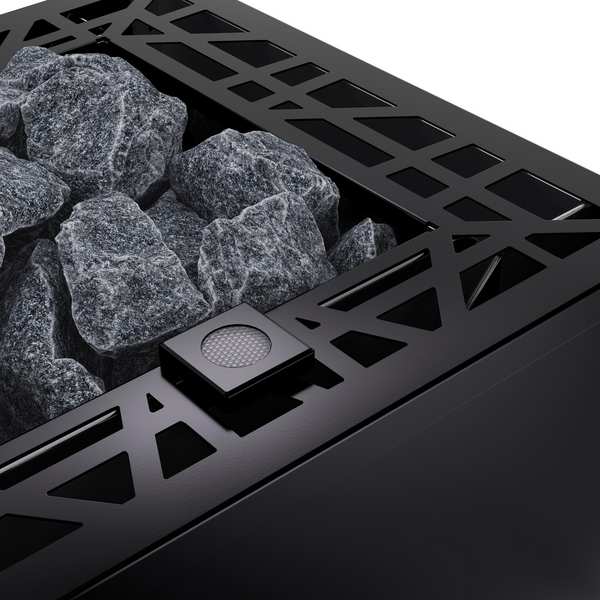

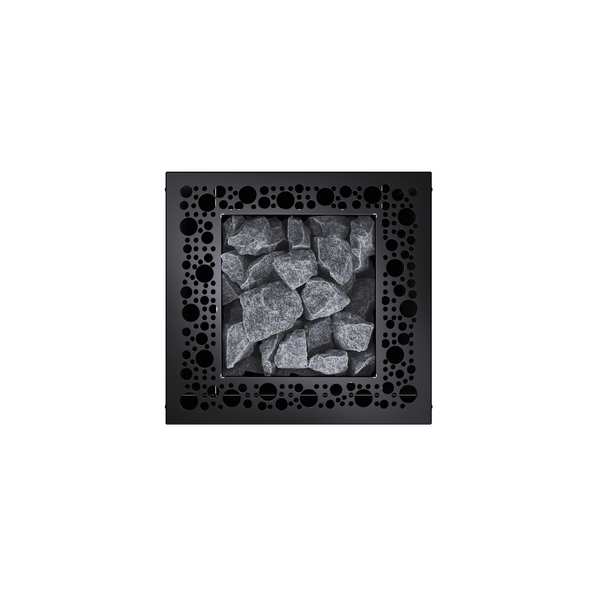

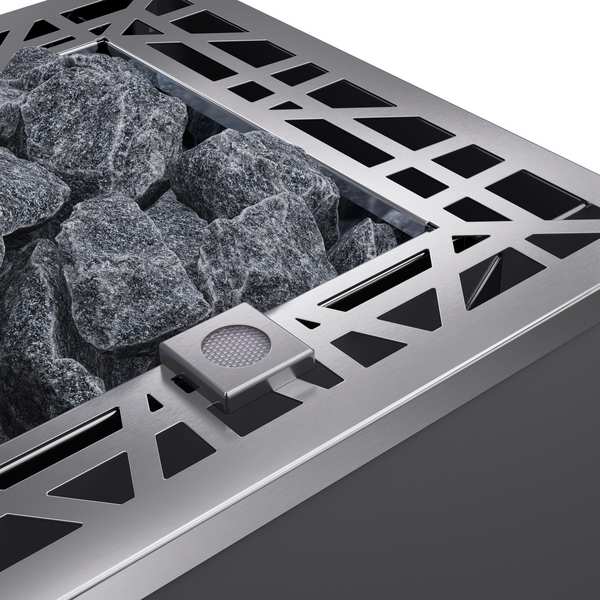

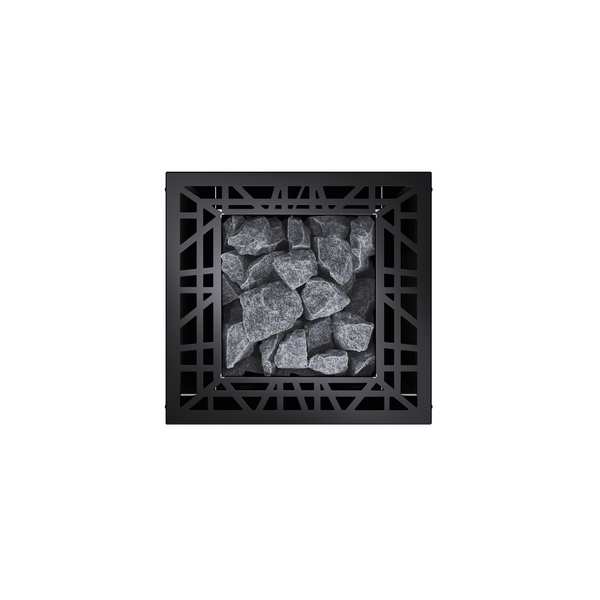

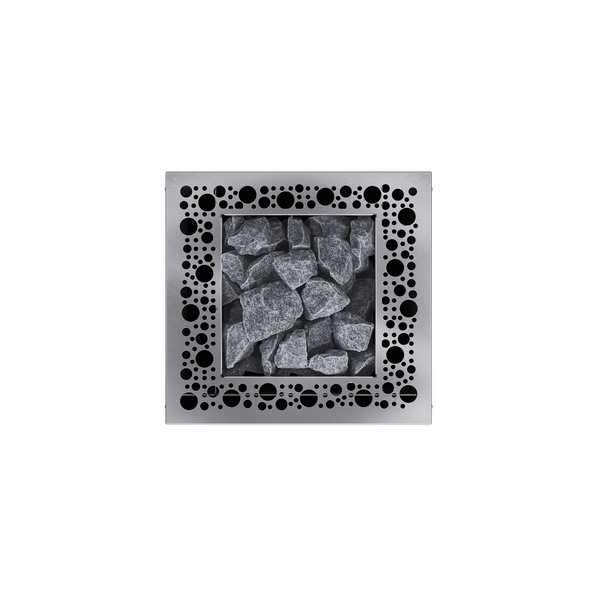

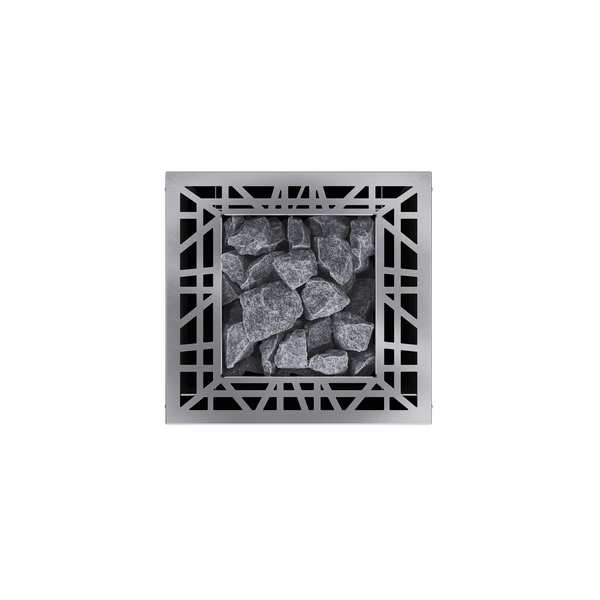

The Cubo 2 is characterized by attractive details such as the new top cover designs, which can be individually selected.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

0 People watching this product now!

Payment Methods:

Description

FLOOR-STANDING

Best engineering in a new design
The Cubo 2 is characterized by attractive details such as the new top cover designs, which can be individually selected. The new design is rounded off with an extended outer shell and the now included rear wall cover panel in the colour of the outer shell for more flexibility and a 360°-look.

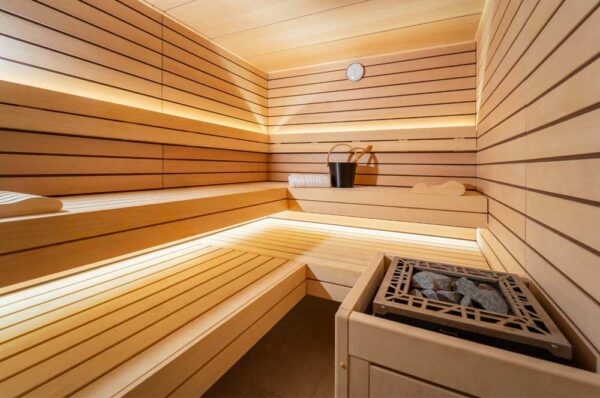

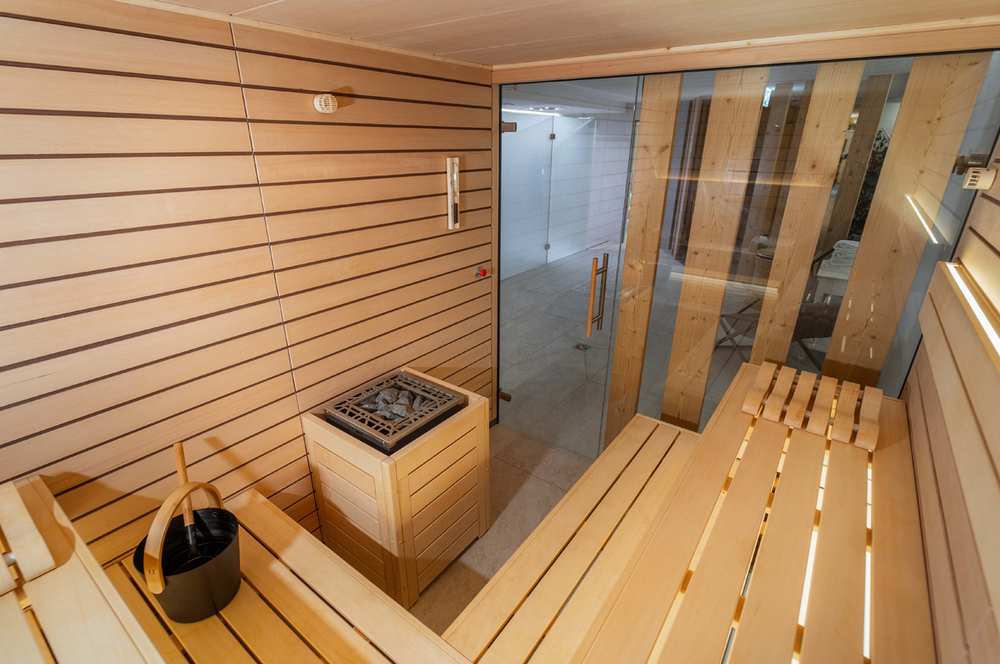

Suitable for private and commercial saunas with a cabin size of 7 – 18 m³.

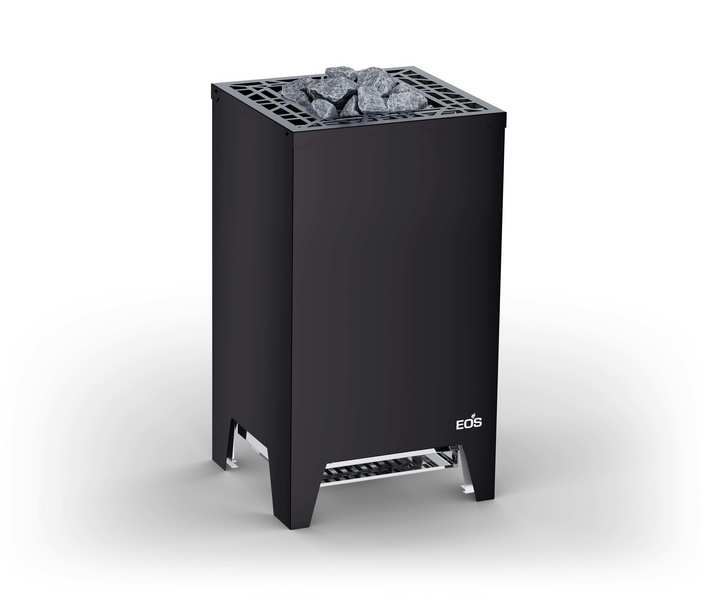

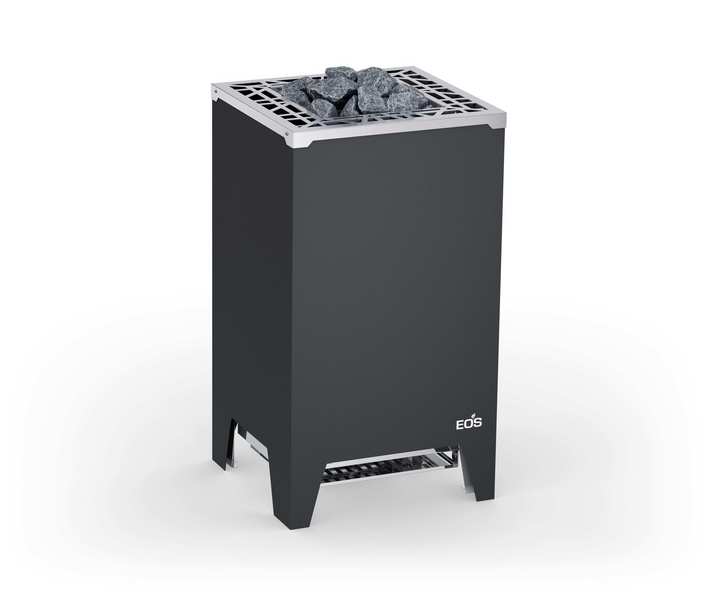

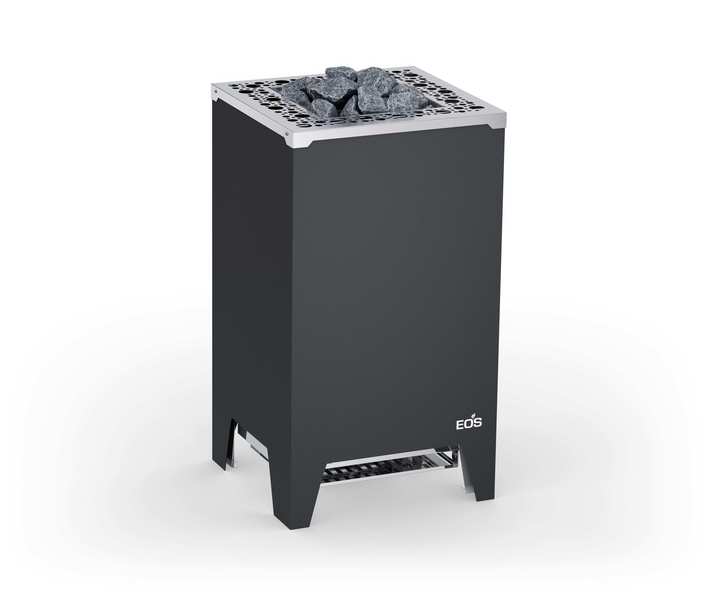

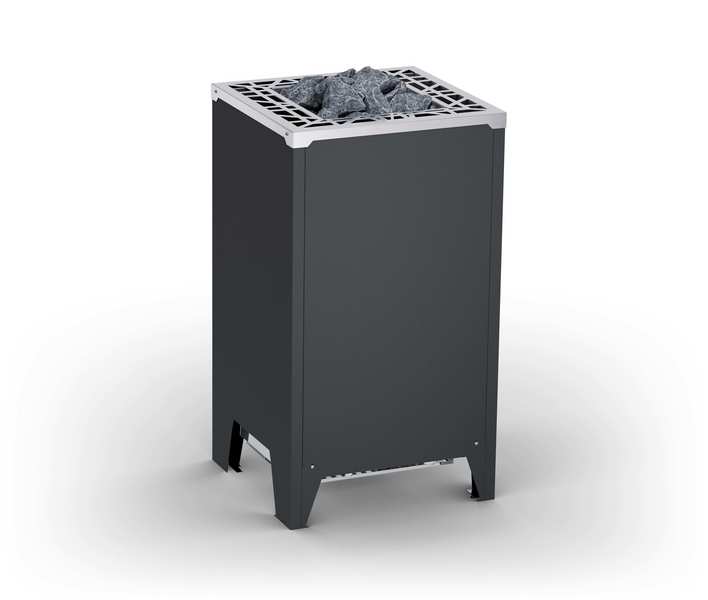

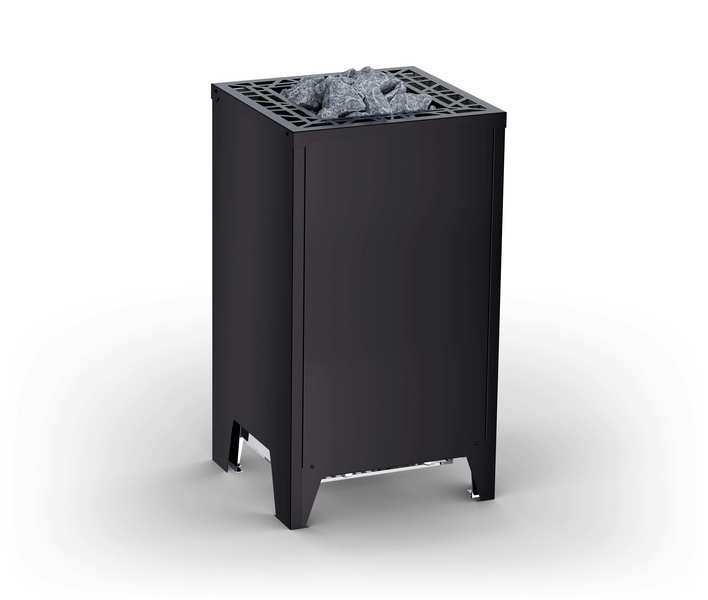

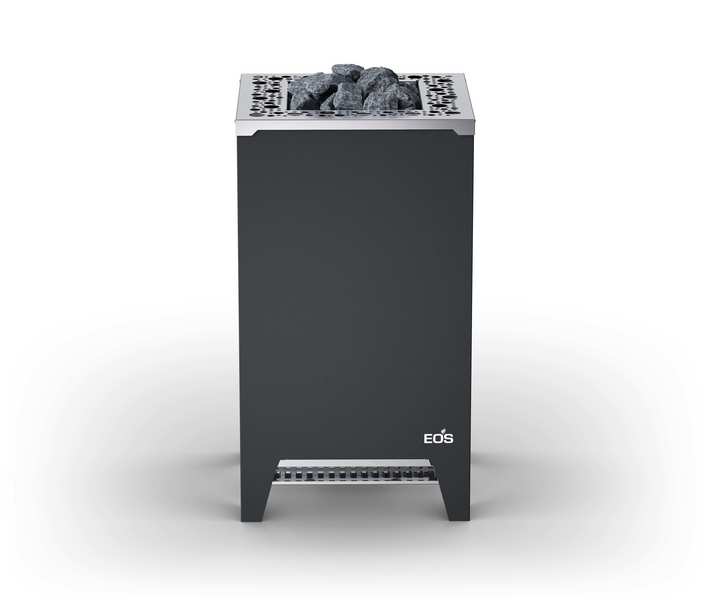

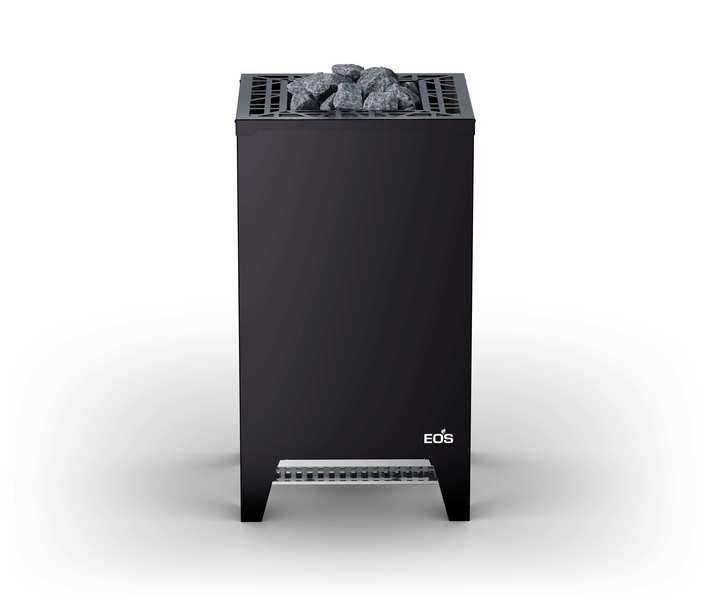

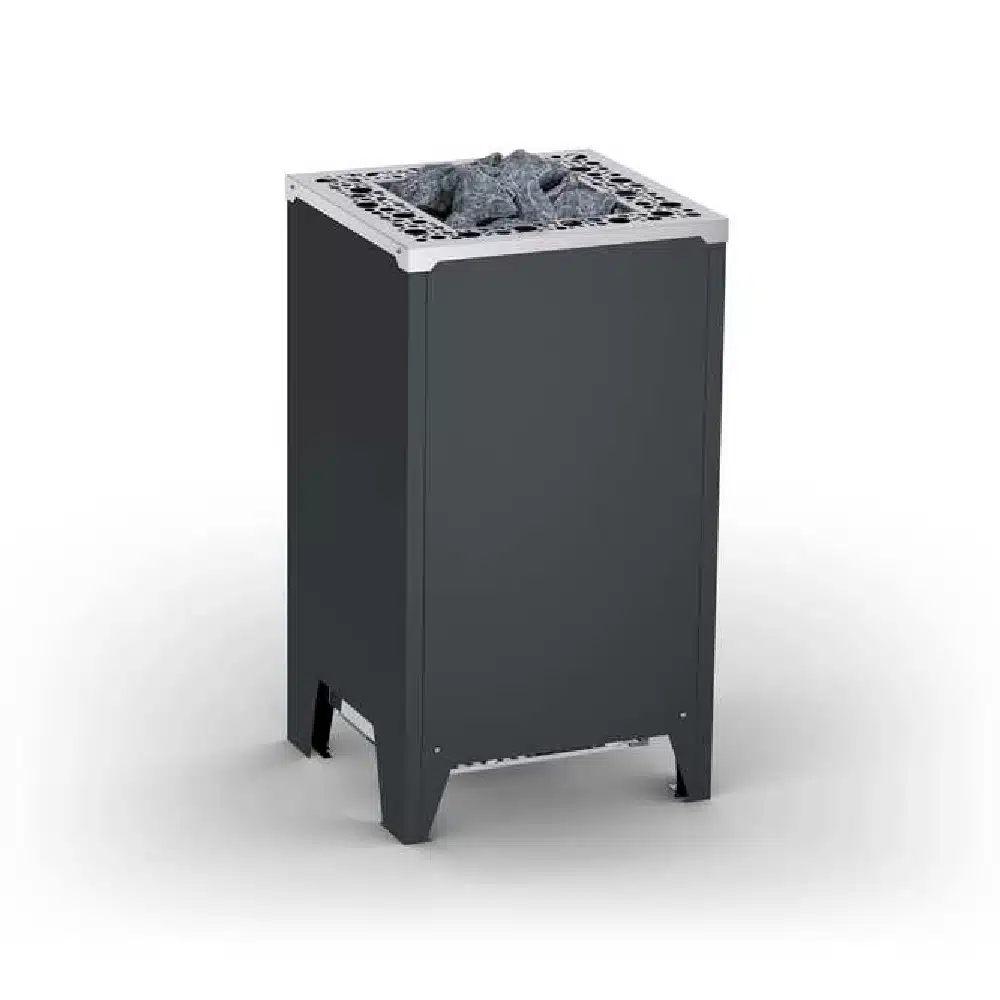

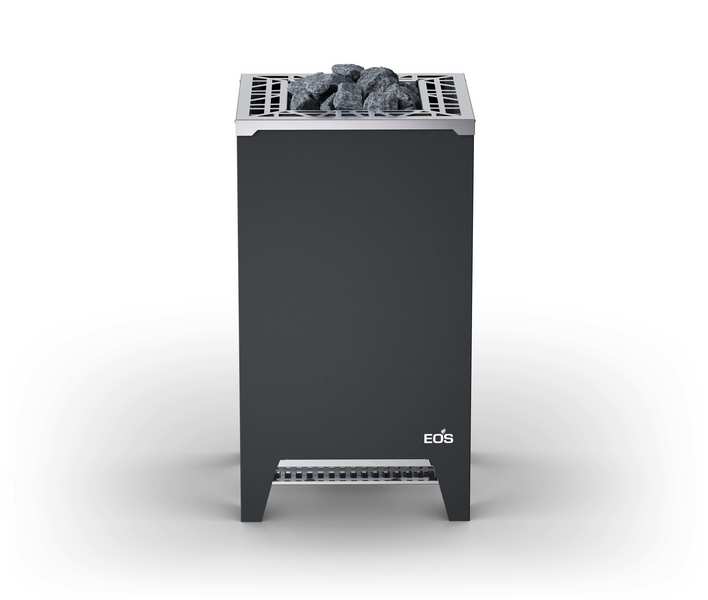

The high-quality floor-standing heater in modern cubistic design for the Finnish (dry) sauna is based on the proven Cubo construction and is available with brushed stainless steel top and outer shell in anthracite pearl effect or completely with high-quality matt black finish.

Robust, durable construction made of stainless steel with space-saving design – only 40 x 39 cm foot-print. Thanks to the included rear wall cover panel with recessed terminal box, Cubo 2 is ideal for installations in front of glass panels. Service-friendly construction: no contact between heating elements and stones, replacement of heating elements without stone removal possible. Optimized air convection and rock store volume for effective heat-up times and powerful sauna infusions.

Rock store fits up to 25 kg stones.

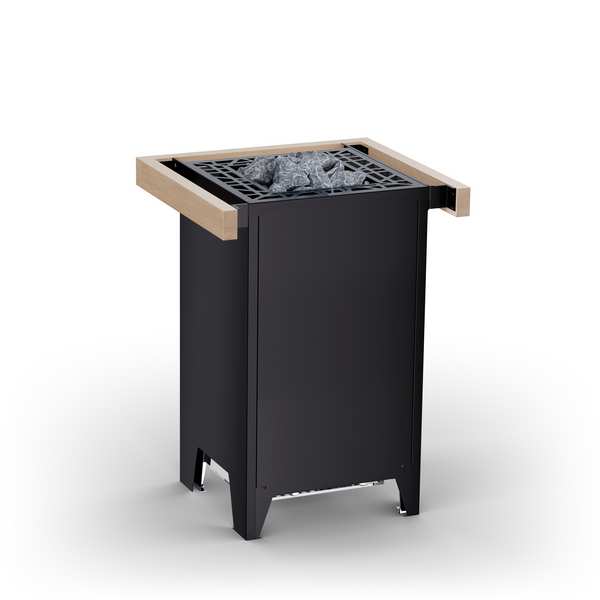

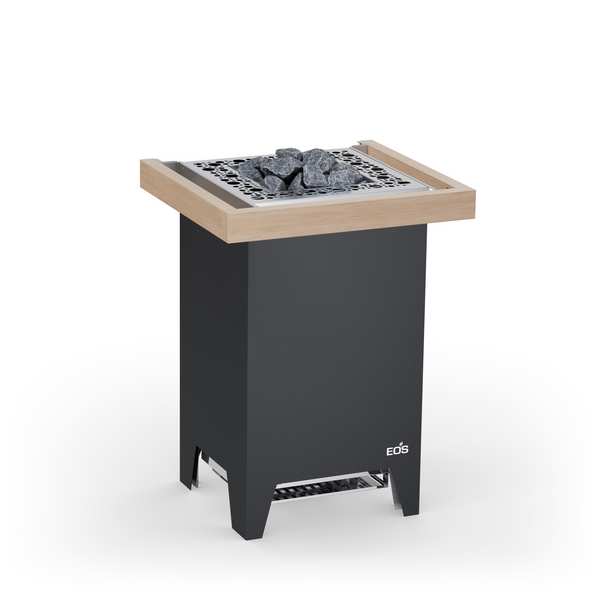

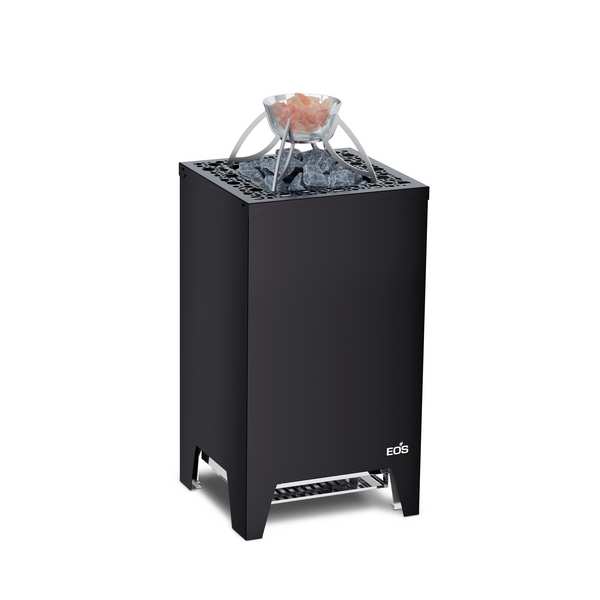

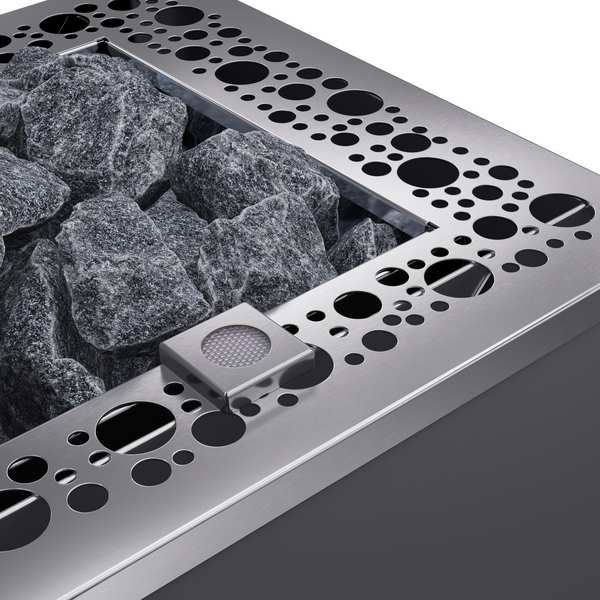

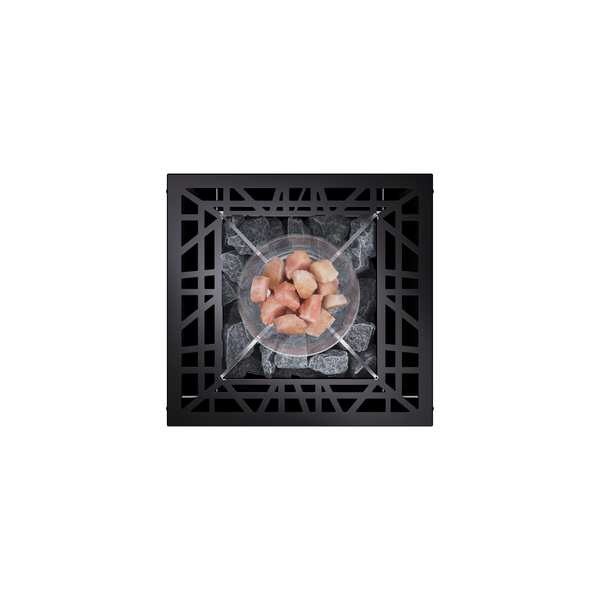

Optional: safety guard rail and mounting brackets, Safe L safety system, EOS Scent Trophy essence bowl.

Cubo 2
Power   Item no.
7,5 kW Styling 1 948890
9,0 kW Styling 1 948891
10,0 kW Styling 1 948892
12,0 kW Styling 1 948893
7,5 kW Styling 2 948898
9,0 kW Styling 2 948899
10,0 kW Styling 2 948900
12,0 kW Styling 2 948901

Cubo 2 black
Power   Item no.
7,5 kW Styling 1 948894
9,0 kW Styling 1 948895
10,0 kW Styling 1 948896
12,0 kW Styling 1 948897
7,5 kW Styling 2 948902
9,0 kW Styling 2 948903
10,0 kW Styling 2 948904
12,0 kW Styling 2 948905

Specification

Cubistic design

The high-quality floor-standing heater in modern cubistic design for the Finnish (dry) sauna is based on the proven Cubo construction and is available with brushed stainless steel top and outer shell in anthracite pearl effect or completely with high-quality matt black finish.

Robust, durable construction

Made of stainless steel wth space-saving design – only 40 x 39 cm foot-print. Thanks to the included rear wall cover panel with recessed terminal box.

Optimized air convection

Optimized air convection and rock store volume for effective heat-up times and powerful sauna infusions.

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection (control unit)

3 x 16 A

Fuse protection (LSG)

no / 3 x 16 A (only 12,0 kW)

Dimensions H/W/D, in cm

72 / 40 / 38,5

For sauna cabin size (7,5 / 9,0 / 10,0 / 12,0 kW)

7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³

Min. size air inlet and outlet (7,5 / 9,0 / 10,0 / 12,0 kW)

35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm

Weight withouth rocks

27,5 kg

Stone filling

25 kg

Power extension required

no / LSG 10 (only 12,0 kW)
