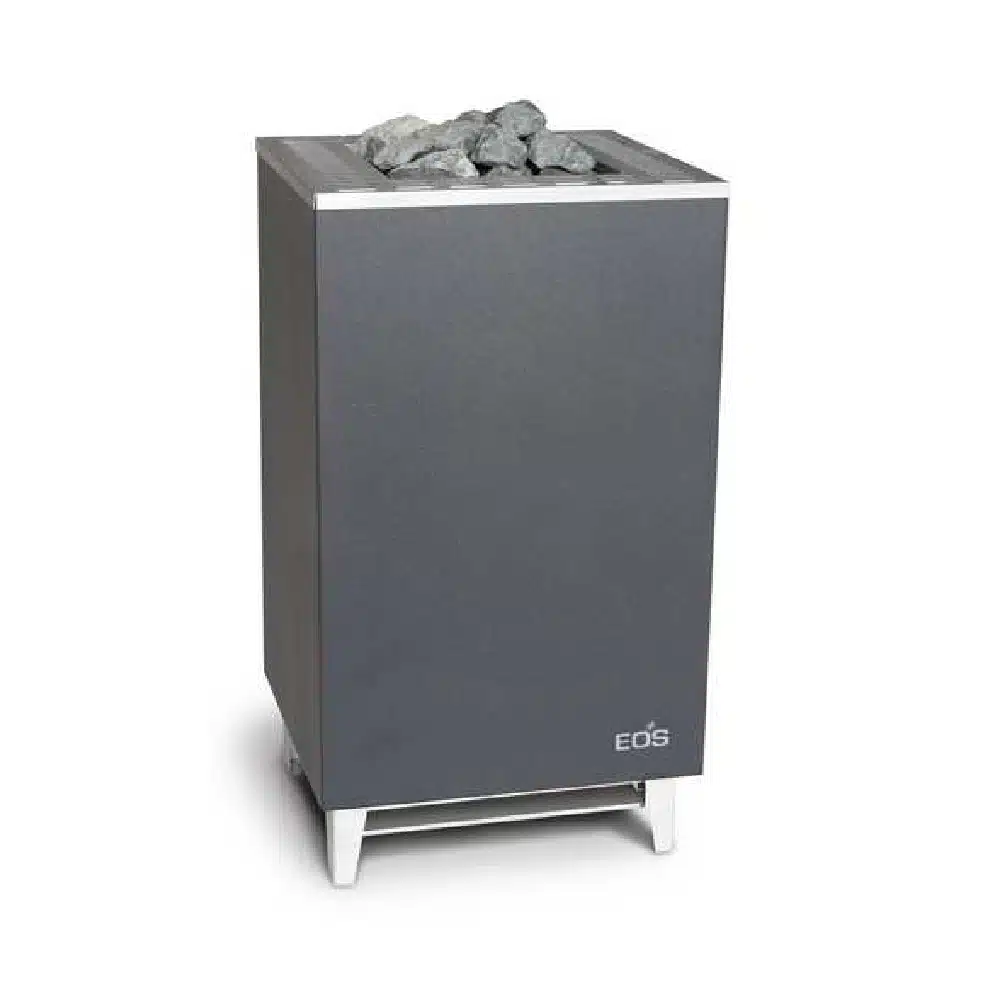

Cubo

Premium class sauna heater for the Finnisch (dry) sauna.
Floor-standing model for private and commercial saunas in modern cubistic design with brushed stainless steel top and outer shell in anthracite pearl effect finish.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

0 People watching this product now!

Payment Methods:

Description

FLOOR-STANDING

Premium class sauna heater for the Finnisch (dry) sauna.
Floor-standing model for private and commercial saunas in modern cubistic design with brushed stainless steel top and outer shell in anthracite pearl effect finish.

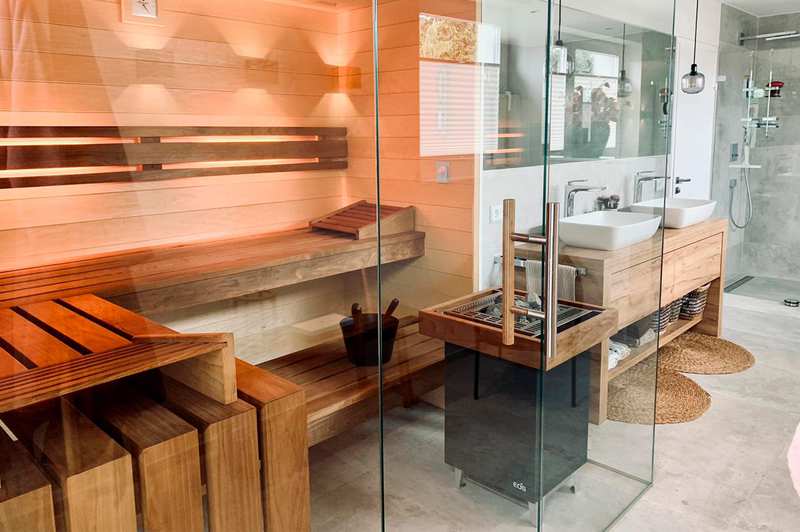

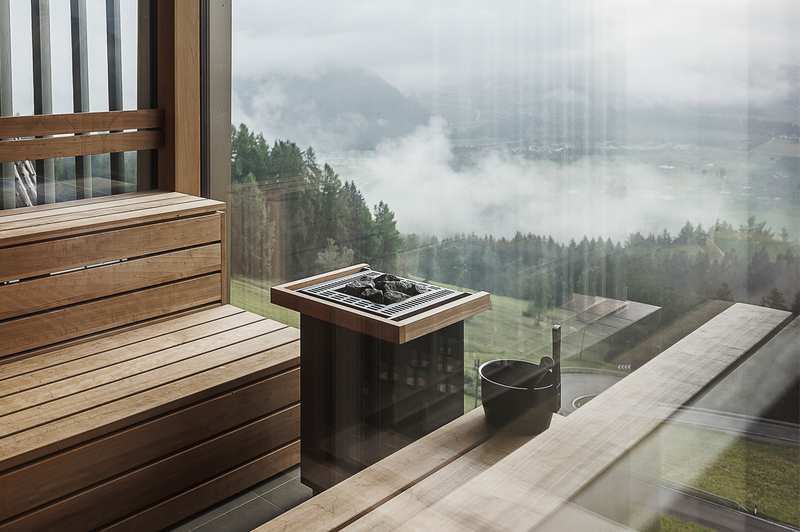

Robust, durable construction made of stainless steel. Compact design – only 40 cm wide. Thanks to the optional flat rear wall with recessed terminal box, Cubo is ideal for installations in front of glass panels.

Service-friendly construction – no contact between heating elements and stones, replacement of heating elements without stone removal possible. Optimized air convection and rock store volume for effective heat-up times and powerful water splashing.

Rock store fits up to 25 kg stones.

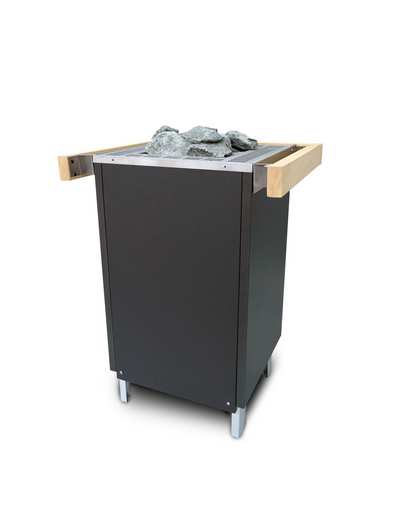

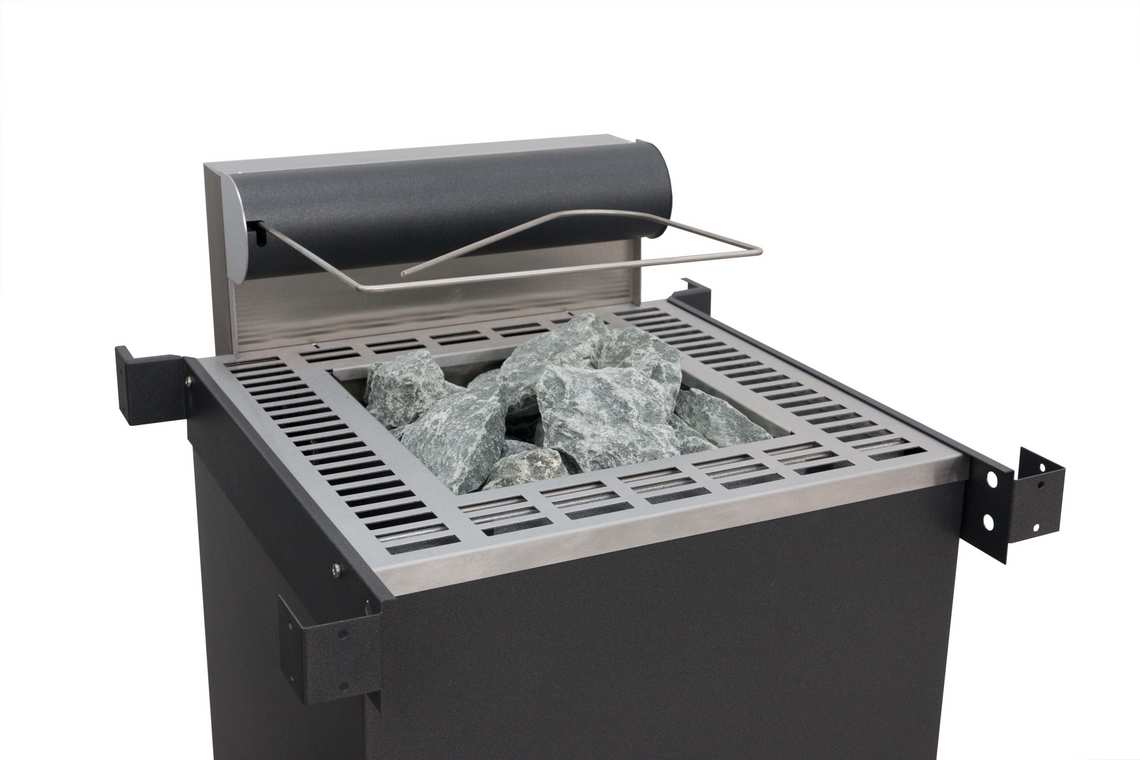

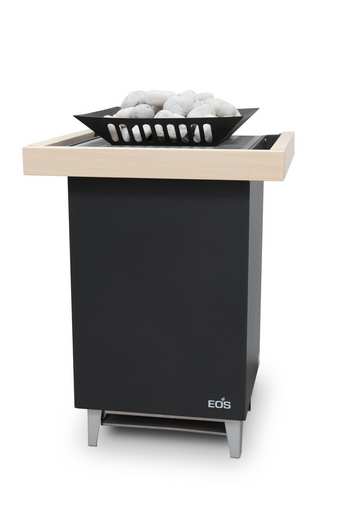

Optional: Stack frame for additional 15 kg stones, rear wall cover, guard rail and mounting brackets.

Power Item no.
7,5 kW 945073
9,0 kW 945074
10,0 kW 947880
10,5 kW 946592
12,0 kW 945075

Specification

Modern cubistic design

Floor-standing model for private and commercial saunas in modern cubistic design with brushed stainless steel top and outer shell in anthracite pearl effect finish.

Robust, durable construction

Robust, durable construction made of stainless steel. Compact design - only 40 cm wide. Thanks to the optional flat rear wall with recessed terminal box,

Service-friendly construction

No contact between heating elements and stones, replacement of heating elements without stone removal possible.

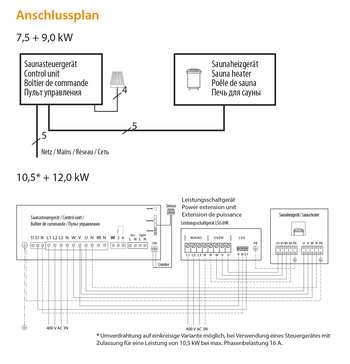

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection (control unit)

3 x 16 A

Fuse protection (LSG)

3 x 16 A

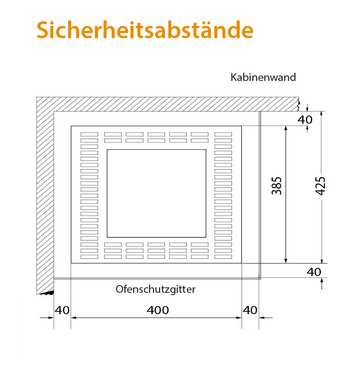

Dimensions H/W/D, in cm

72 / 40 / 38,5

For sauna cabin size (7,5 / 9,0 / 10,5 / 12,0 kW)

7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³

Min. size air inlet and outlet (7,5 / 9,0 / 10,5 / 12,0 kW)

35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 7 cm

Weight withouth rocks

25,5 kg

Stone filling

25 kg

Power extension required

no / LSG 10 (only 10,5 and 12,0 kW)
