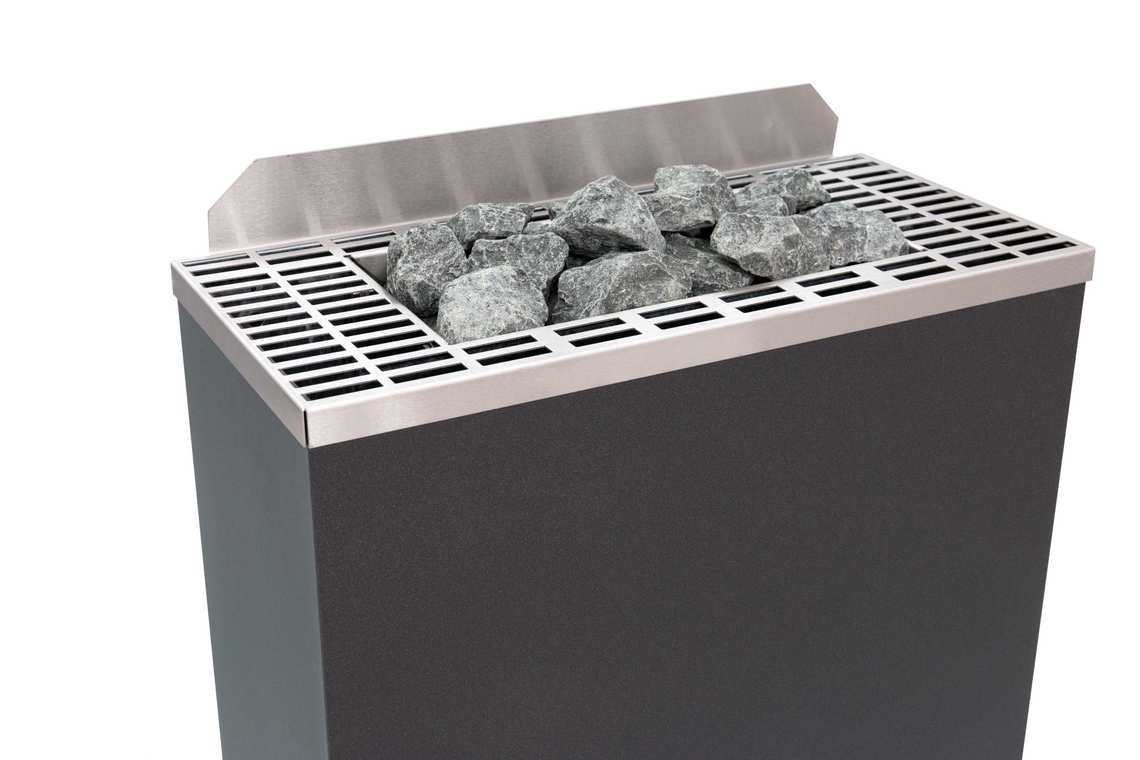

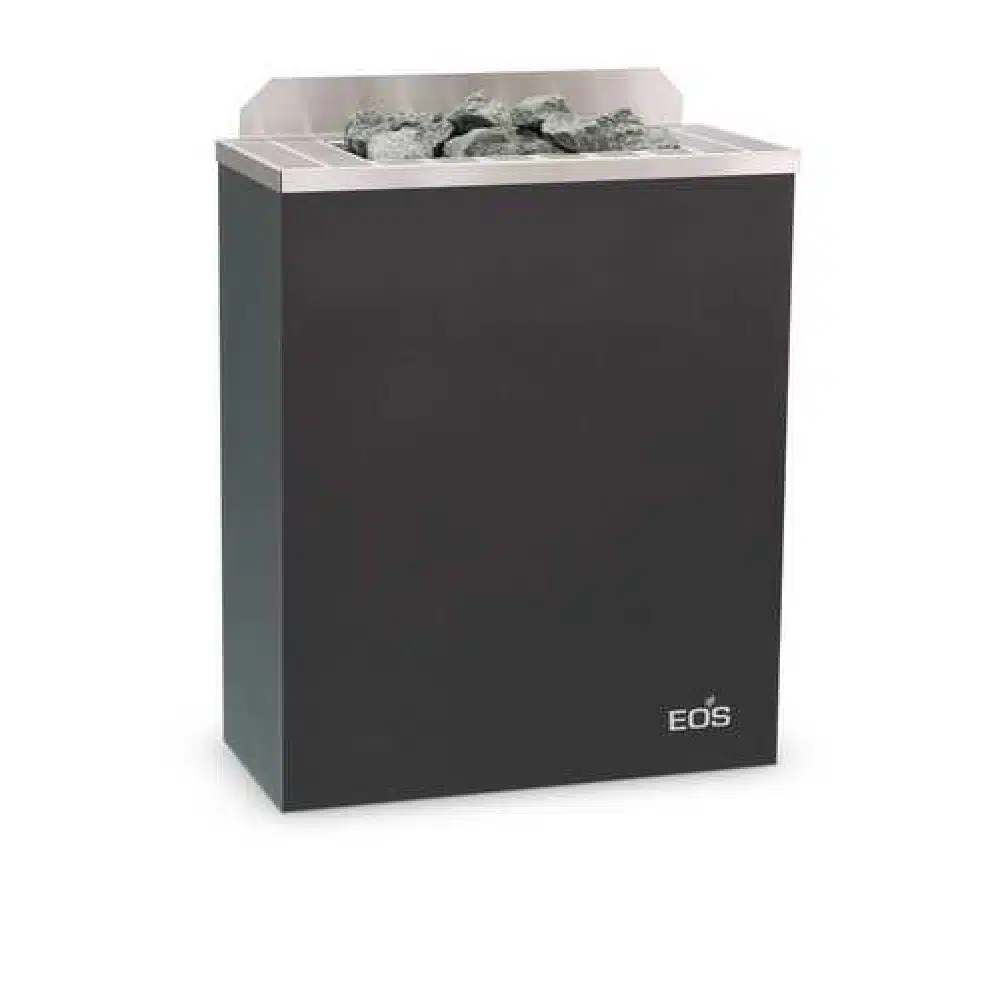

Gracil W

Versatile sauna heater for the (dry) Finnish sauna.
Wall-mounting model for private sauna cabins. Very space-saving – only 27.5 cm total depth (incl. 3 cm wall gap).

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Compare

Add to wishlist

0 People watching this product now!

Payment Methods:

Description

WALL-MOUNTING

Versatile sauna heater for the (dry) Finnish sauna.
Wall-mounting model for private sauna cabins. Very space-saving – only 27.5 cm total depth (incl. 3 cm wall gap). Gracil W stands out through its sleek, straight-lined design and is a great match for modern upper-class saunas.

Durable triple-shell construction. Anthracite pearl effect finish. Brushed stainless steel top cover.

Rock store fits up to 20 kg stones.

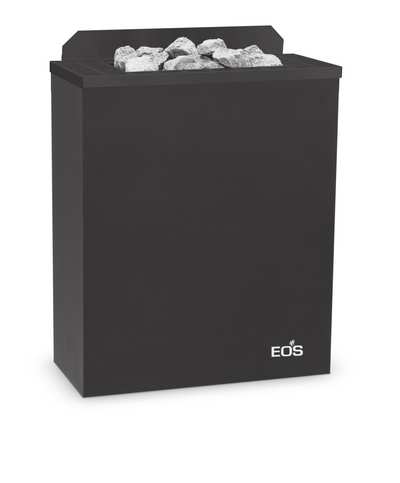

Also available with high-quality matt black finish*

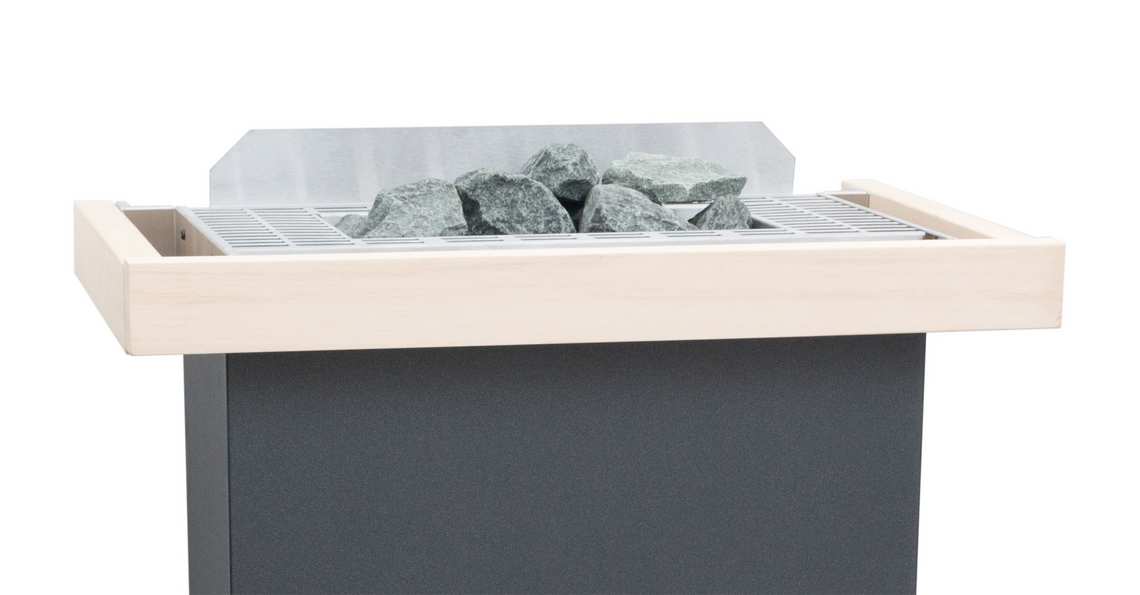

Optional: Wooden guard rail with mounting brackets, rear wall cover panel

Power	Item no.
6,0 kW	947157
7,5 kW	947158
9,0 kW	947159
6,0 kW – black*	948197
7,5 kW – black*	947245
9,0 kW – black*	947246

Specification

Straight-lined design

Gracil W stands out through its sleek, straight-lined design and is a great match for modern upper-class saunas.

Durable Construction

Durable triple-shell construction. Anthracite pearl effect finish. Brushed stainless steel top cover.

Electrical connection

400 V 3N ~ 50/60 Hz

Fuse protection (control unit)

3 x 16 A

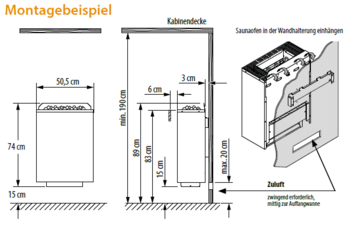

Dimensions H/W/D, in cm

74 / 50,5 / 27,5

For sauna cabin size (6,0 / 7,5 / 9,0 kW)

6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³

Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)

35 x 5 cm / 35 x 6 cm / 35 x 6 cm

Weight withouth rocks (6,0 / 7,5 / 9,0 kW)

20,6 kg / 21,1 kg / 21,6 kg

Stone filling

20 kg

Power extension required
